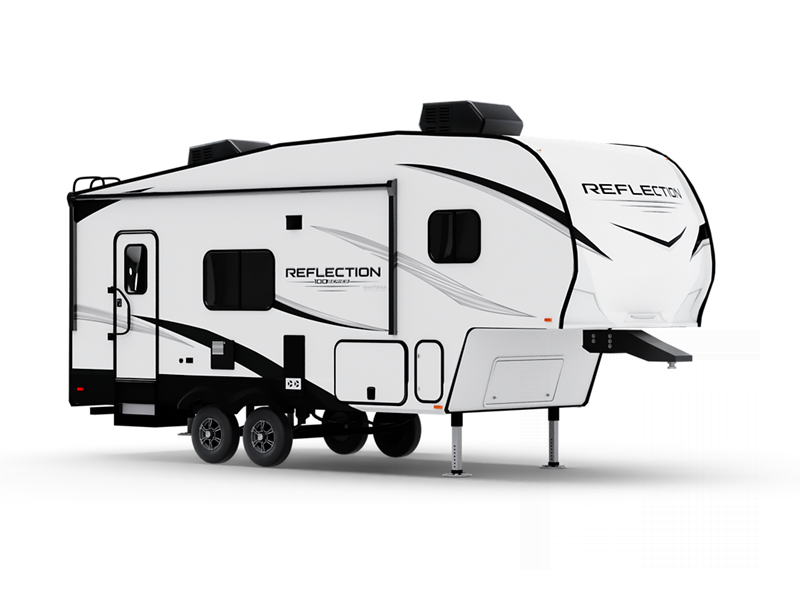

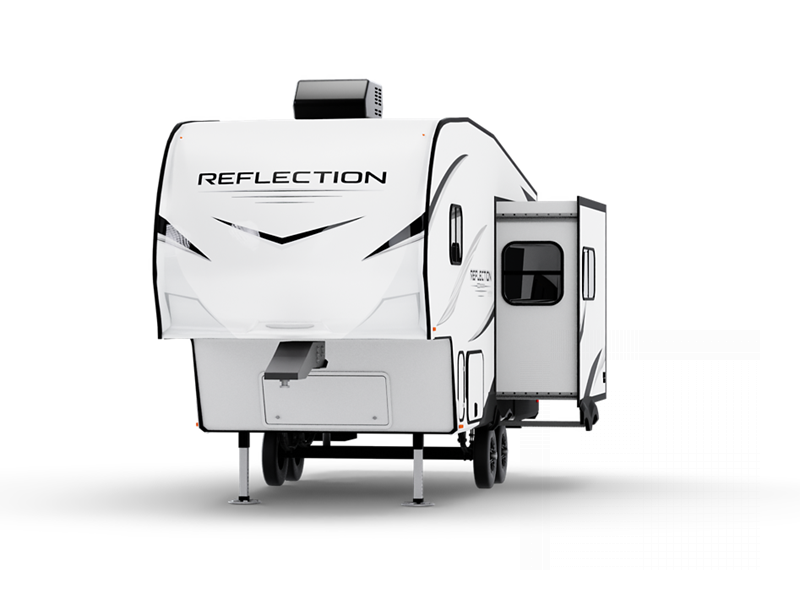

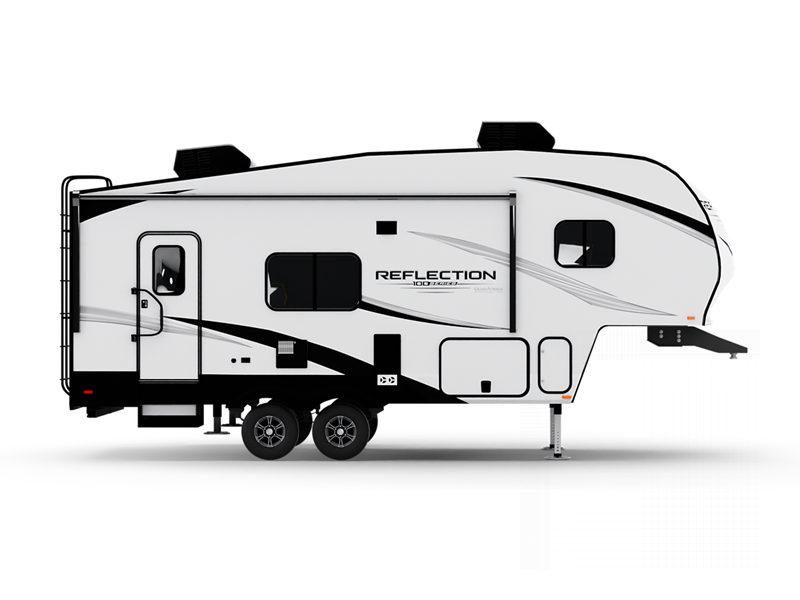

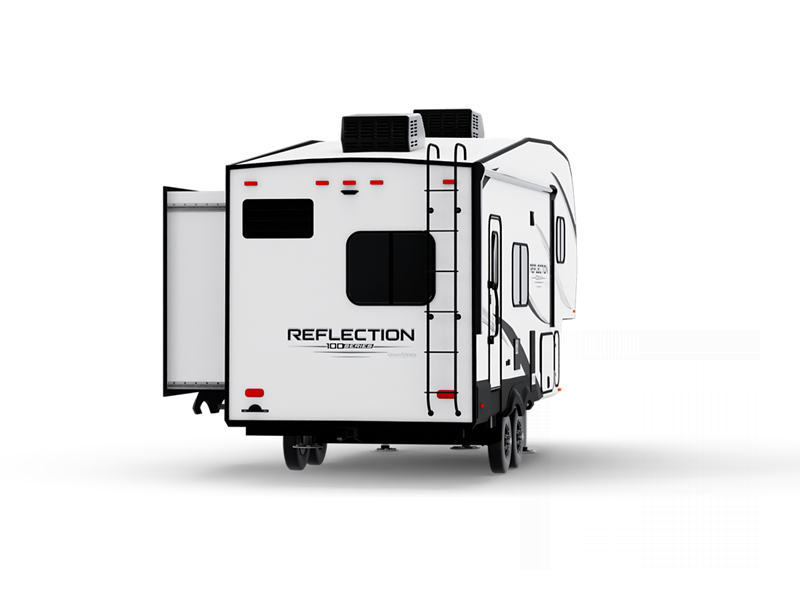

Grand Design Reflection 100 Series Fifth Wheel RVs For Sale
The Reflection 100 Series fifth wheels by Grand Design offer a more affordable camping experience without sacrificing comfort! These half-ton towables feature spacious interiors, superior construction materials, and smooth towing thanks to the MorRyde CRE3000 suspension system!
You will be able to enjoy your fifth wheel for years to come since there are full laminated walls, a double insulated roof, front cap, and floor, plus gel coated exterior sidewalls. The Arctic 4-Seasons Protection Package will allow you to camp during the colder months or even go full-time, and the Solar Package will provide off-grid capabilities! There are two additional packages; the Peace of Mind Package and Ultimate Power Package that include residential cabinetry and pleated shades, a "one-touch" electric awning with LED lights, and a Compass Connect system to stay informed on all your units functions!
Value and luxury come together perfectly in the Reflection 100 Series fifth wheels by Grand Design; choose yours today!
-
Reflection 100 Series 22RK
Grand Design Reflection 100 Series fifth wheel 22RK highlights: 40" LED TV on ... more about Reflection 100 Series 22RK
Specifications
Sleeps 4 Slides 1 Length 26 ft 11 in Ext Width 8 ft Ext Height 12 ft Hitch Weight 1086 lbs GVWR 9995 lbs Dry Weight 6930 lbs Fresh Water Capacity 55 gals Grey Water Capacity 78 gals Black Water Capacity 39 gals Tire Size ST225/75R15 LRE Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 LP Tank Capacity 30 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR 40" High-Definition LED TV Awning Info 18' One Touch Electric LED Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Reflection 100 Series 27BH
Grand Design Reflection 100 Series fifth wheel 27BH highlights: Double-Size ... more about Reflection 100 Series 27BH
Specifications
Sleeps 10 Slides 1 Length 32 ft 3 in Ext Width 8 ft Ext Height 12 ft 3 in Hitch Weight 1218 lbs GVWR 10195 lbs Dry Weight 8038 lbs Fresh Water Capacity 55 gals Grey Water Capacity 78 gals Black Water Capacity 39 gals Tire Size ST225/75R15 LRE Furnace BTU 30000 btu Number Of Bunks 2 Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 LP Tank Capacity 30 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info LR 40" High-Definition LED TV Awning Info 20' One Touch Electric LED Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Reflection 100 Series 28RL

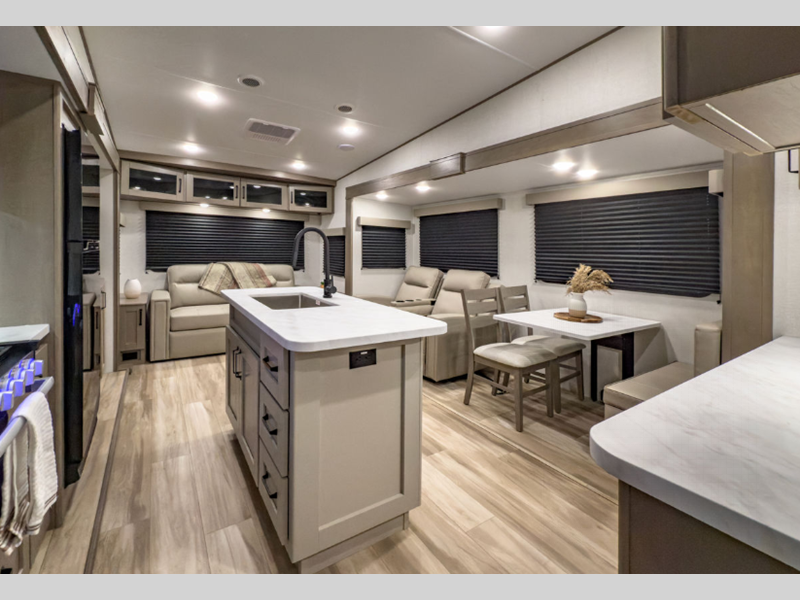

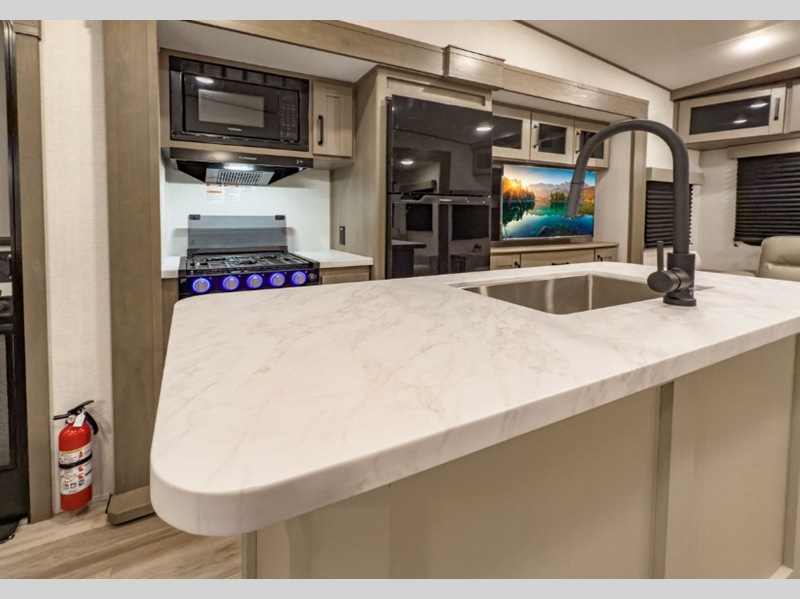

Grand Design Reflection 100 Series fifth wheel 28RL highlights: Kitchen Island ... more about Reflection 100 Series 28RL
Have a question about this floorplan? Contact Us
Specifications
Sleeps 5 Slides 2 Length 31 ft Ext Width 8 ft Ext Height 12 ft 3 in Hitch Weight 1348 lbs GVWR 10995 lbs Dry Weight 8362 lbs Fresh Water Capacity 55 gals Grey Water Capacity 78 gals Black Water Capacity 39 gals Tire Size ST225/75R15 LRE Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Cooktop Burners 3 Shower Size 30" x 36" Number of Awnings 1 LP Tank Capacity 30 lbs Water Heater Type On Demand Tankless AC BTU 15000 btu TV Info High-Definition LED TV Awning Info 13' One Touch Electric LED Axle Count 2 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
Take a Virtual Tour
Reflection 100 Series Features:
Standard Features
Exterior
- 80% Tint Radius Safety Glass Windows

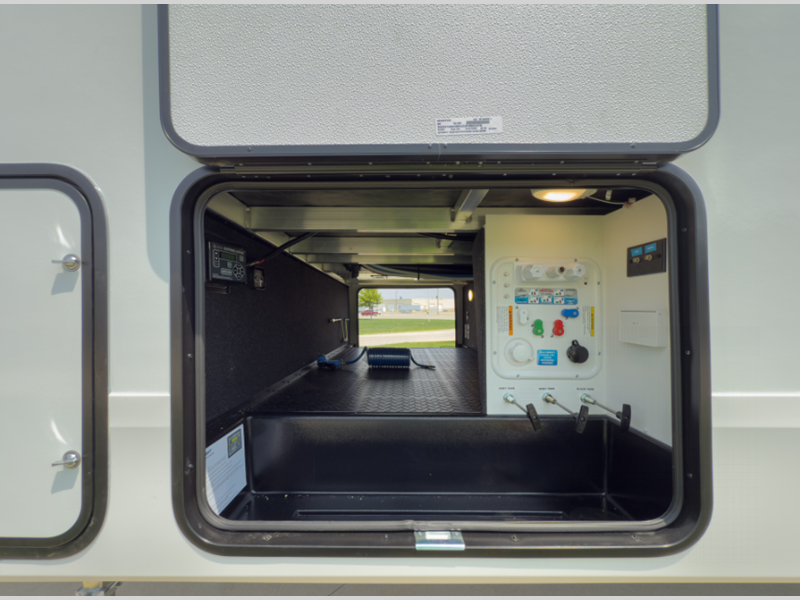

- Battery Kill Switch in Pass Thru Storage Area
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Shower
- Factory Installed Roof Ladder
- Exterior Cable Hookup (Sidewall)
Construction
- Gel Coated Exterior Sidewalls
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Double Insulated Roof & Front Cap
- One-Piece TPO Roof Membrane with Limited Lifetime Warranty
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
Running Gear
- Rubberized Suspension Equalizer
- Aluminum Wheels with E-Rated Tires
- Under Carriage Spare Tire and Carrier
Interior
- Matte Black Fixtures and Hardware
- Hardwood Galley Slide Trim Moldings
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Slide Room Windows
- Heated Wall Hugger Theatre Seats w/LED Lights & Massage (Most Models)
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting with Motion Sensors (Key Areas)

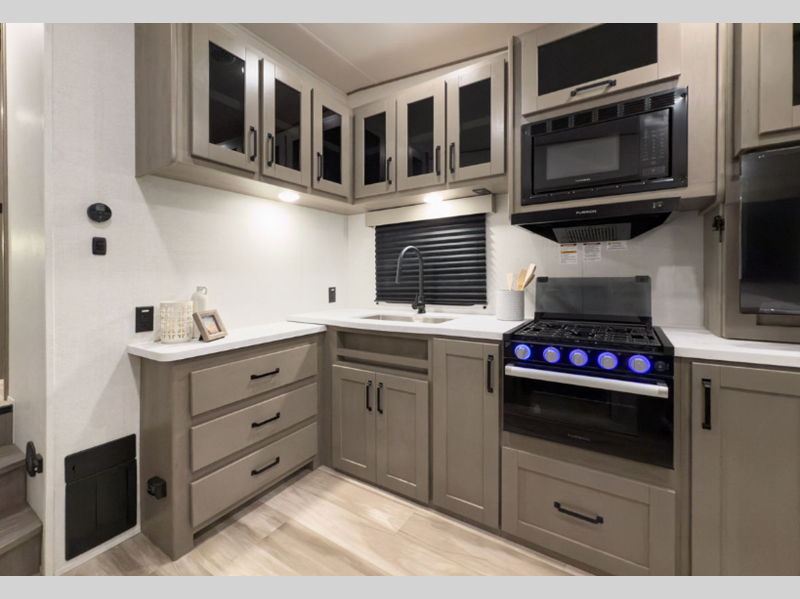

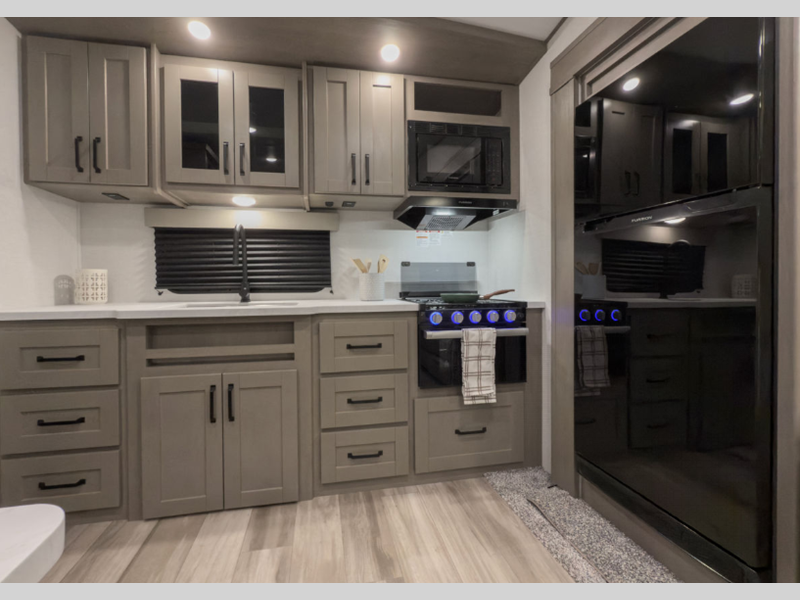

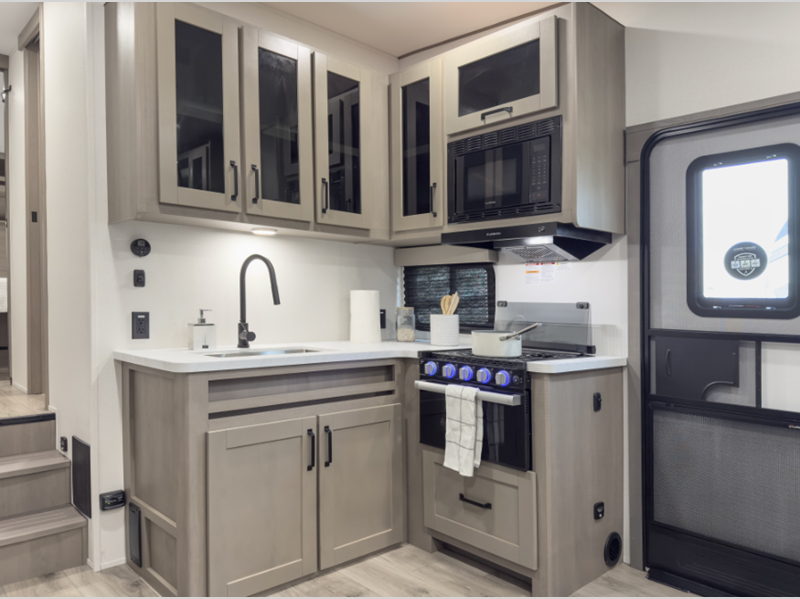

Kitchen
- Deep Seated Stainless Steel Sink
Electrical
- Marine Grade LED Hitch Light
- 180W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 60 Amp Charge Controller
- Inverter Prep
- Solar Disconnect
HVAC
- Adjustable A/C Vents
- 35k BTU High Capacity Furnace
Plumbing
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 2" Fresh Water Drain Valve
- Easy Access Low Point Drain Valves

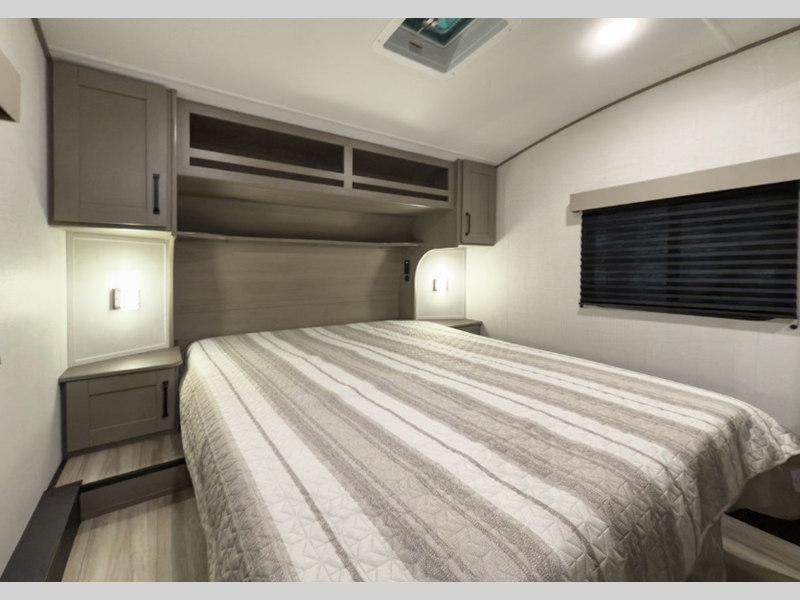

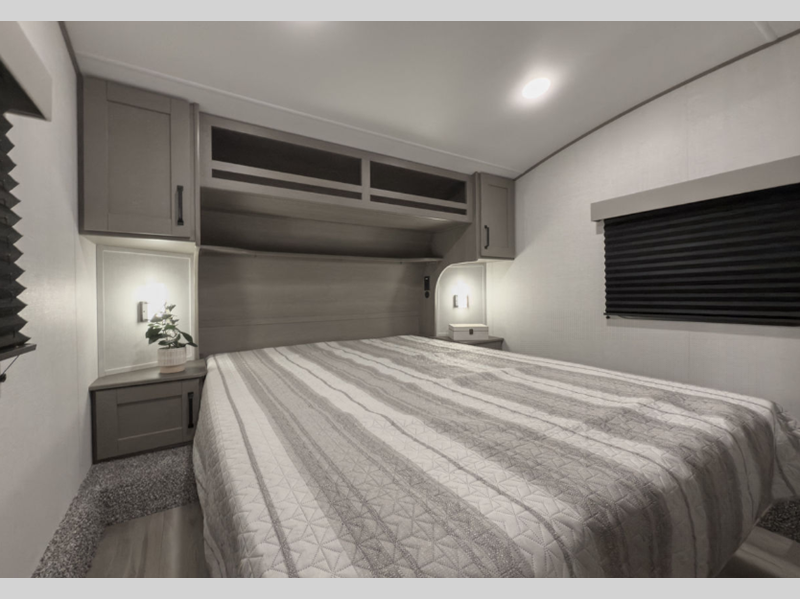

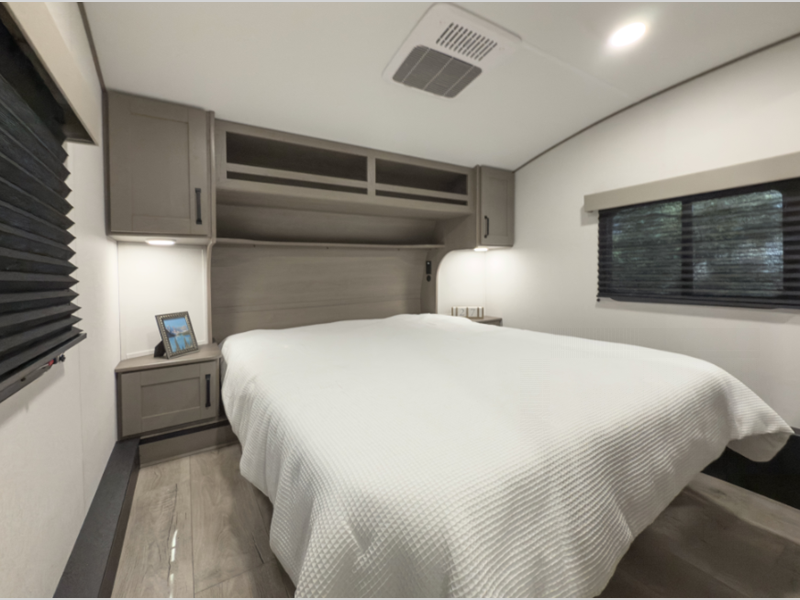

Bedroom

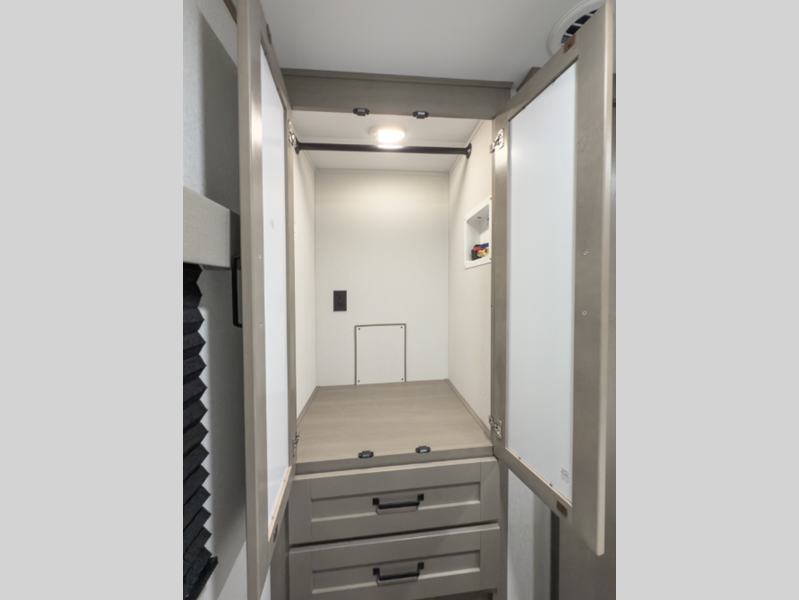

- Functional Wardrobe Closet
- Oversized Bed Base Storage
- 60 x 80 Mattress with Residential Bedspread
- Bedroom Heat Registers

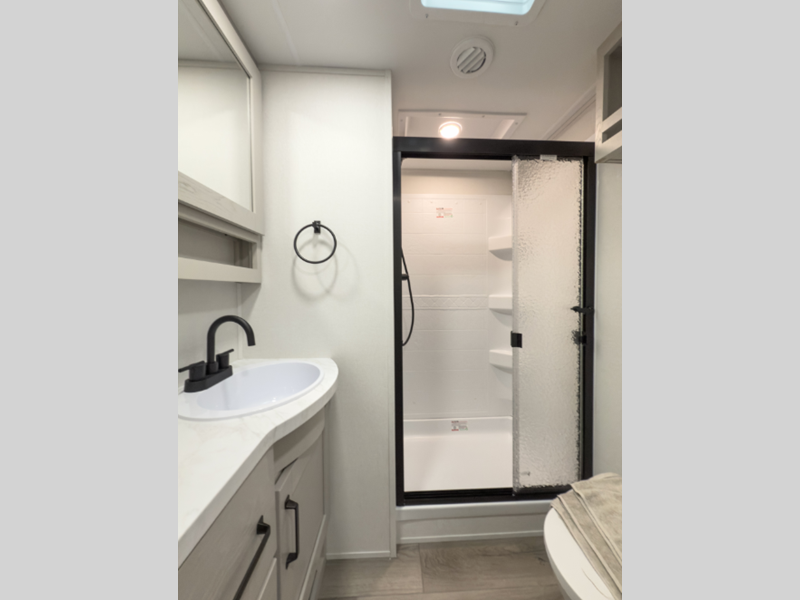

Bathroom

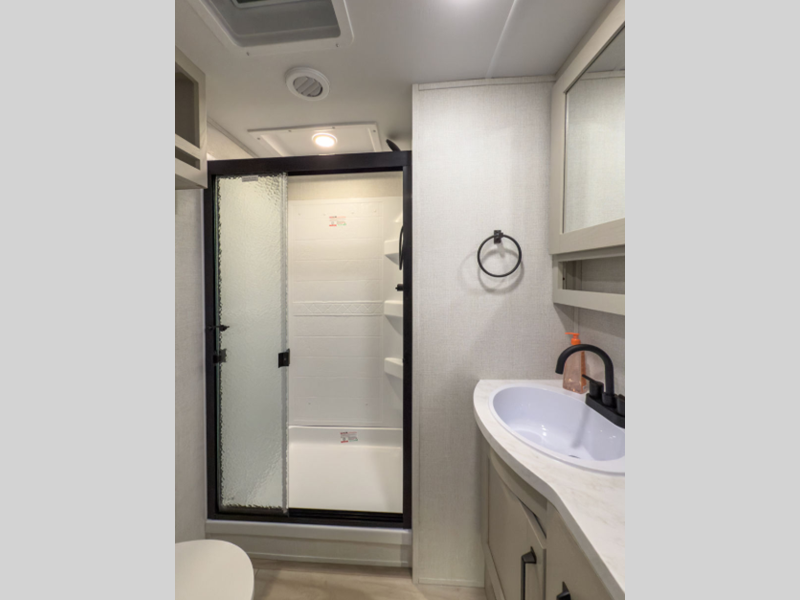

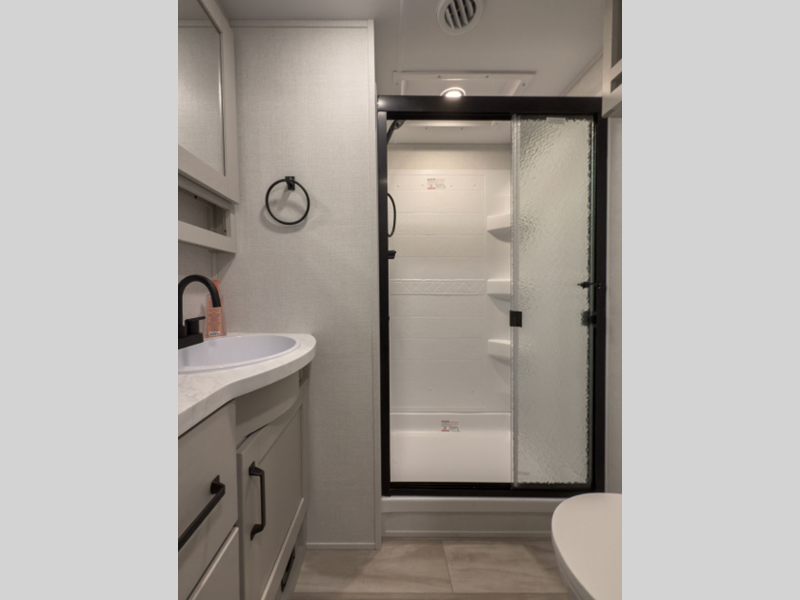

- 30 x 36 Residential Walk-In Shower
- Heat Duct and A/C Vents in Bathroom
- Power Vent Fan
- Large Vanity Top w/ Deep Sink
- Large Medicine Cabinet with Mirror
Appliance
- 12V 10 Cu. Ft. Refrigerator
Electronics
- Cable/SAT Prep
Packages
Peace of Mind Package
- Residential Cabinetry
- Universal All-In-One Docking Station
- Metal Slam Latch Front Cargo Doors
- On Demand Water Heater
- Porcelain Toilet with Foot Flush
- High-Rise Faucet with Pullout Sprayer
- MORryde "Step Above" Entry Step
- Wall Hugger Theatre Seats

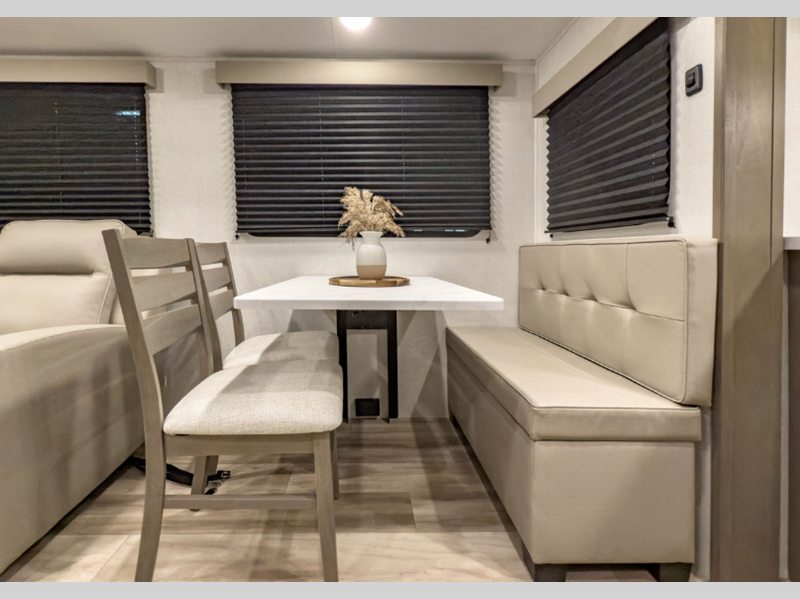

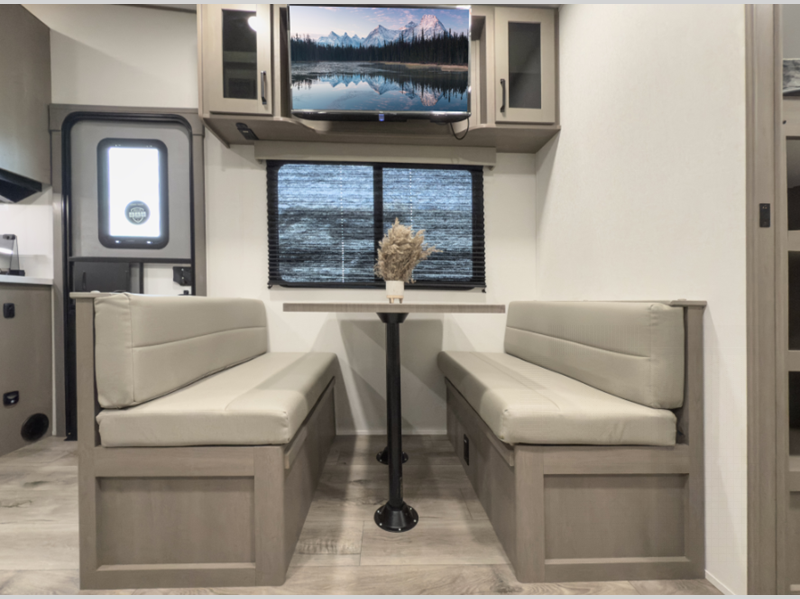

- Residential Booth Dinette
- LP Quick Connect
- Self-Adjusting Brakes
- Pleated Shades
- 6' Coiled Break Away Cable
- Deep Seated Stainless Steel Kitchen Sink
- Walk-on Roof
- Aluminum Rims
- Spare Tire & Carrier
- 2” Receiver Hitch Upgrade
Ultimate Power Package
- Microwave w/vented range hood
- 15k Ducted Main A/C
- "One-Touch" Electric LED Awning
- AM/FM HDMI Bluetooth Stereo
- 50 AMP Service,
- Wired and Framed for 2nd A/C
- High Definition LED TV
- Detachable Power Cord with LED Light
- One-Touch Automatic Leveling System
- LED Interior Lighting
- Motion Sensor Entry Lighting (LED)
- Compass Connect
- Tire Linc TPMS
Arctic 4-Seasons Protection Package
- 30K BTU High Capacity Furnace
- Double Insulated Roof & Front Cap
- Heated & Enclosed Dump Valves
- Heated & Enclosed Underbelly w/ Circulating Heat
- Thermofoil Insulation under Holding Tanks
Solar Package
- 180W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 60 Amp Charge Controller
- 12V 10 Cu. Ft. Refrigerator
- Inverter Prep
- Solar Disconnect
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
